PROCESS

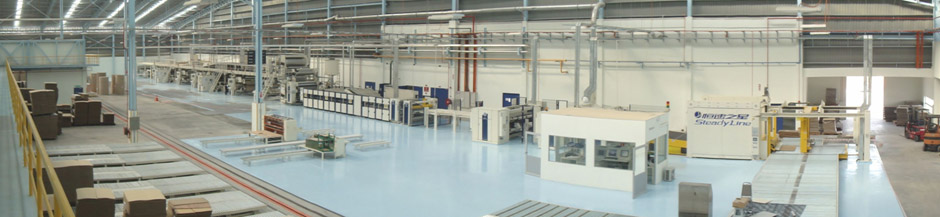

Corrugator Machines
- Max speed 180mpm
- Max width 2.2M
- Consistant speed job changing with Consistant quality
- Consistant glue line application (glue machine auto adjust glue gap)
- High speed wet end paper roll splicer setup automation
| BHS Corrugator (Shanghai) |
|---|
| Item |
Spec. |
|---|
| Max Capacity |
4,000 MT / 8,000,000 M2 |
| Max Speed |
180 MPM |
| Max Roll Width |
2,200 MM |
| Min Roll Width |
1,100 MM |
| Max Length |
3,560 MM |
| Min Board Length |
500 MM |
| Max Board Out |
5 Out |
| Max Board Out |
1 Out |
| Flute Type |
A, B, E, BA & EB |

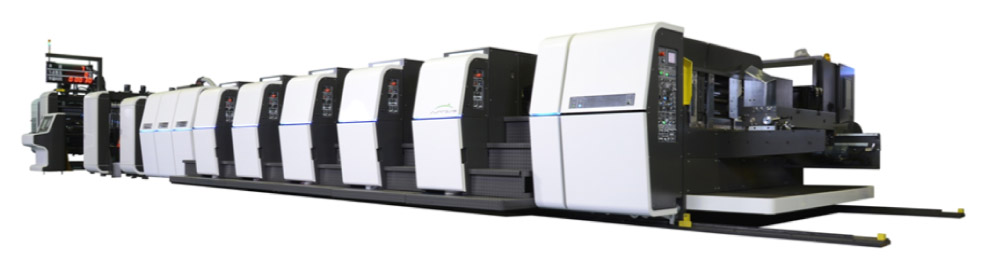

Printing Machines
- Max speed with 300pcs/min
- Computer servo motion control system with touch screen display
- Fully auto flexo floder gluer with rotary die-cut
- 4 color printing with doctor chamber blade inking system
- Design with vacuum transfer for consistant printing registration
- Glue system with Valco ejection
| Sunrise Printer (Taiwan) |
|---|
| Item |
Spec. |
|---|
| Max Capacity |
1,200 MT |
| Color |
4 Colors |
| Doctor Blade |
Yes |
| Vacuum Transfer |
Yes |
| Rotary Die-Cut |
Yes |
| Max Sheet |
1,150 x 2,700 MM |
| Min Sheet |
340 c 750 MM |
| Max Speed |
300 PCS/Min |
Other Machines
- One unit of 4 Color Flexo Printer (Plus Energy)
- 2 units of 4 Color Flexo Printer (Chyan Jye)
- 2 units of 4 Color Jumbo Printer (Plus Energy)

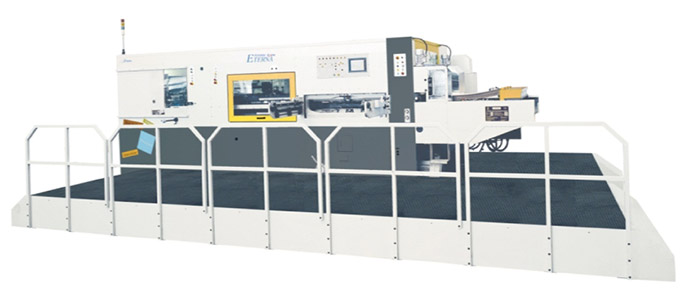

Eterna Machines
- 2 units auto flaten die-cut with stripping
- 2 units semi auto flaten die-cut with stripping
- Max sheet size length 1620mm x width 1200mm
- Fast setup with side chase loader
| Eterna (Shang Hai) |
|---|
| Item |
Spec. |
|---|
| Max Capacity |
800 MT |
| Max Cutting Size |
1,600 x 1,180 MM |
| Max Sheet Size |
1,620 x 1,200 MM |
| Min Sheet Size |
650 x 450 MM |
| Max Speed |
5,000 Passes/Hr |

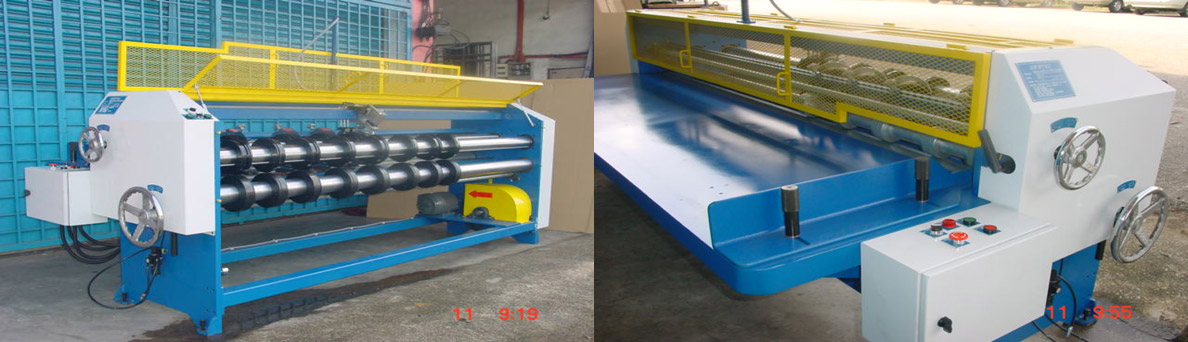

Slitter & Scorer Machines
(1,900 MM / 2,500 MM)

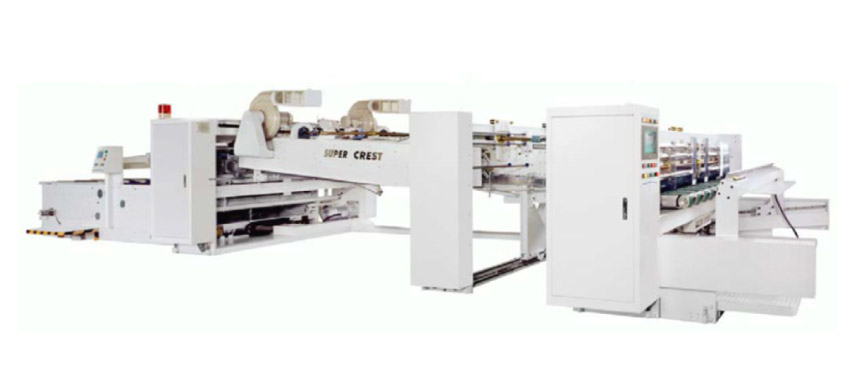

Gluer Machines
- Semi auto folder gluer with quick setup and able to run max speed 200 pcs / min
| Oshitani (Japan) |
|---|
| Item |
Spec. |
|---|
| Max Width |
340 MM |
| Min Width |
250 MM |
| Max Length |
600 MM |
| Min Length |
350 MM |
| Min Sheet Width |
700 MM |
| Max Speed |
300 MM |

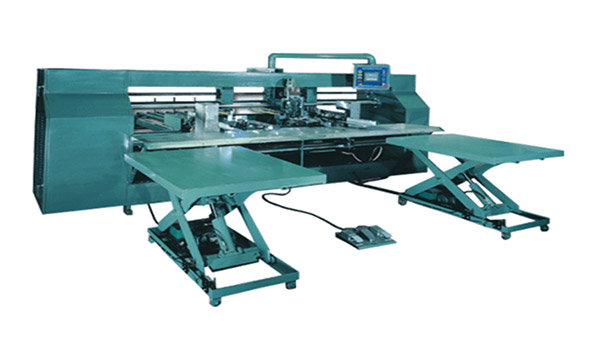

Stitcher Machines

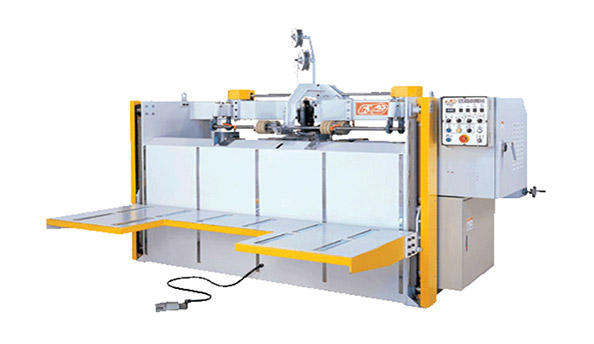

Two Joint Semi-auto Stitcher Model GTS 3000 (3,000 MM)
Semi-auto Stitcher Model GS 202

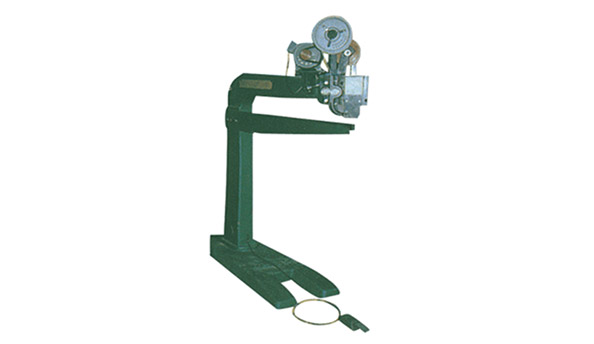

Manual Arm Stitcher

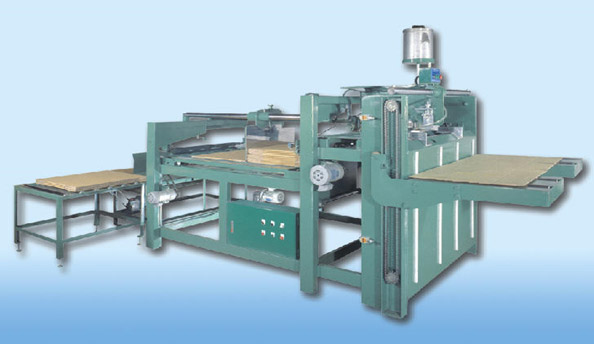

Semi-auto Gluer Model AS-008

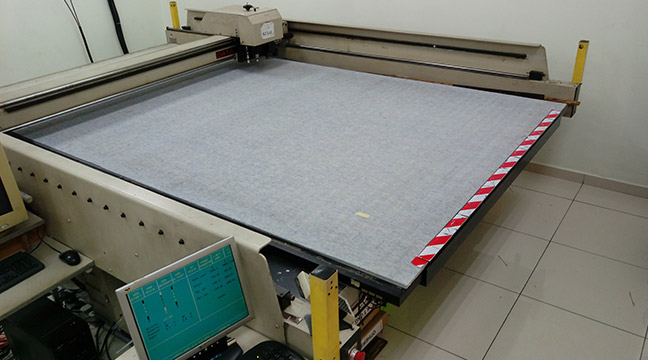

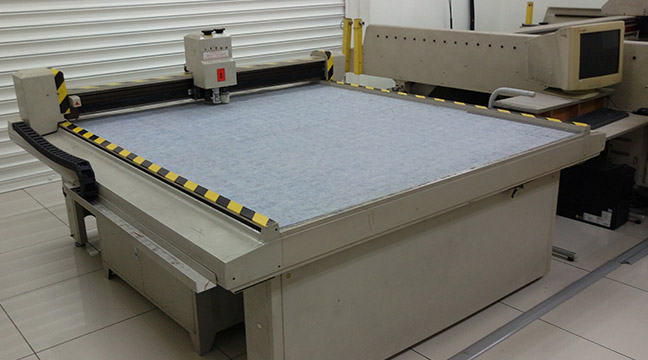

Sample Making Machines
Sample Maker Machine Model DT-3000
Sample Maker Machine Model AOKE DC2 1713
Packaging Division Products
Corrugated Carton Boxes
Corrugated Carton Boxes

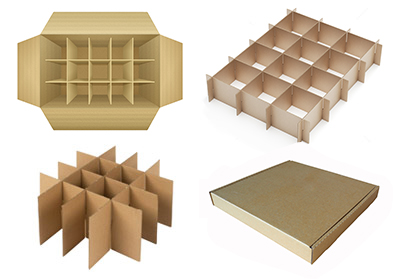

Nestings / Fittings / Dividers / Layer Pads
